Diagnostics

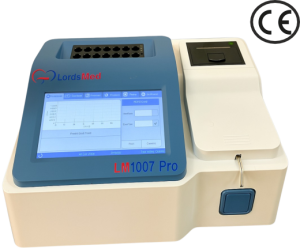

LM 1007 Pro
Download the Brochure
Product Specification
Technical Information
| Category | Specification |
|---|---|
| Principle | Colorimetry, Photometry, Absorbance |
| Analysis Methods | End Point, Kinetic, Two-Point, Multi-Standard, Dual Wavelength, 2 Point Endpoint |
| Sample Types | Serum, Plasma, Urine, CSF |
| Measurement Modes | Flowcell / Cuvette |
| Flowcell Specs | 18µL Quartz, 10mm Path Length |
| Wavelength Filters | 340nm, 405nm, 510nm, 546nm, 578nm, 630nm; Optional: 450nm, 670nm |
| Absorbance Range | 0.0001 to 4.000 Abs |
| Absorbance Accuracy | 0.0001 Abs |
| Light Source | Halogen Lamp |
| Lamp Voltage | 6V 10W |
| Sleep Function | Lamp sleep timer to extend life |
| Sample Volume Range | 1µL to 5000µL |
| Temperature Control | Pre-Incubator 37°C; Colorimetric incubation at 25°C, 30°C, 37°C |
| Operating Temperature | Room Temperature |
| Output Options | Built-in Thermal Printer / External Printer |
| Connectivity | 2 USB Ports, 1 LAN Port |
| Quality Control Modes | L-J, X-R, X-B |
| Memory Capacity | Stores up to 100,000 results with graphs, QC, calibrator, programs |
| Custom Programs | 200 User-Defined Programs |
| Power Supply | DC 12V, 6A |
| Interface | Standard USB Interface |
| Display | LCD Touchscreen (external mouse/keyboard support) |
| Device Dimensions | 340mm (D) × 260mm (W) × 142mm (H) |
| Net Weight | 4.6 kg |

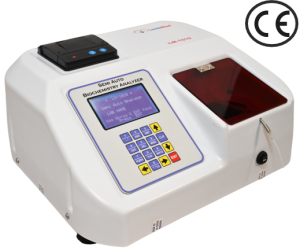

LM 1010
Download the Brochure
PRODUCT SPECIFICATIONS
This advanced LED-based photometer is designed for high-precision biochemical analysis across 7 wavebands from 340nm to 670nm. It supports multiple measurement modes including kinetic, fixed time, end point, and multi-standard calibration with monochromatic and bi-chromatic options. The device utilizes a 32µl quartz flow cell with a 10mm path length and requires a minimum reagent volume of 350µl. Offering a wide photometric range from 0.0001 to 3.500 Abs, it ensures accurate readings in diverse testing conditions. It includes 100 user-defined programs and stores up to 1000 results. User interaction is streamlined with a spill-proof membrane keyboard and a 57mm easy-load thermal printer. Connectivity is enabled via RS-232 for direct interfacing with external printers or computers. An automatic self-test ensures reliable optical performance. The thermostatic system maintains temperatures at room temperature or 37°C ±0.5°C using a solid-state sensor and heater. The device operates on AC (180–240V, 50Hz) or DC (10–18V, 1A) power, with a 12V battery backup for continuous operation. Compact and lightweight, it measures approximately 320mm x 270mm x 125mm and weighs 1.5kg (4.5kg with packaging), suitable for laboratory environments maintained between 10°C and 35°C.
TECHNICAL SPECIFICATIONS
| Category | Specification |
|---|---|
| Light Source | LED based, 7 wavebands from 340nm to 670nm |
| Photometric Range | 0.0001 to 3.500 Abs |
| Flow Cell | 32µl Quartz Flow Cell, 10mm Path Length |
| Reagent Volume | Minimum 350 µl (0.350ml) |
| Measurement Modes | Kinetic, Fixed Time, End Point, Multi-Standard Calibration, Mono & Bi-Chromatic |
| Programming | 100 User-defined Programs |
| Memory | Stores up to 1000 data results |
| Keyboard | Spill-proof membrane keyboard |
| Printer | 57mm paper thermal printer, easy load, quick action hatch |
| Output Interface | RS-232 Serial Port (to external printer/computer) |
| Self Testing | Automatic self-testing for all configured wavelengths |
| Temperature Settings | Room Temperature & 37°C with ±0.5°C precision |
| Thermostat Control | Digitally controlled solid-state sensor and heater |
| Power Supply | AC: 180–240V, 50Hz; DC: 10–18V, 1A |
| Battery Backup | 12V battery backup for continuous operation |
| Operating Conditions | Room Temp: 10°C to 35°C; Avoid direct sunlight |
| Dimensions | L: 320mm × W: 270mm × H: 125mm (Approx.) |
| Weight | 1.5kg (approx.); 4.5kg (with packaging) |

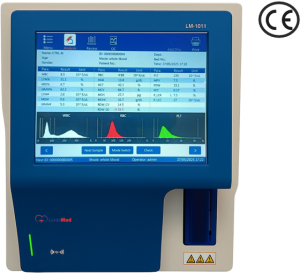

LM 1011
Download the Brochure
Product Specification
This compact and efficient hematology analyzer is designed for accurate and high-throughput blood analysis, offering a throughput of 60 tests per hour. It features a 10.4-inch LCD touchscreen for intuitive operation and provides 3-part WBC differentials, measuring 21+3 parameters along with detailed histograms. The analyzer uses impedance technology for WBC, RBC, and PLT measurements and colorimetry for HGB. With a storage capacity of up to 50,000 results, built-in printer options, and LIS connectivity, it’s ideal for clinical laboratories needing reliable and streamlined performance. It supports minimal sample volumes, automatic blockage clearing, and multiple reagent types for both operation and maintenance.
Technical Information
| Category | Specification |
|---|---|
| Throughput | 60 Tests per Hour |
| Display | 10.4-inch LCD Touchscreen |
| Principles & Technologies | WBC, RBC, PLT: Impedance; HGB: Colorimetric |
| Number of Parameters | 21 + 3 Histograms |
| Parameters | WBC (LYM#, MID#, NEUT#, LYM%, MID%, NEUT%), RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, PLCR, P-LCC |
| Analysis Modes | 3-Part Differential: WBC, RBC, PLT |
| Sample Volume | Whole Blood Mode: 10 µL, Pre-Dilute Mode: 10 µL |
| Performance Linearity | WBC: 1.0–99.9 ×10⁹/L, RBC: 0.1–8.0 ×10¹²/L, HGB: 20–250 g/L, PLT: 3–999 ×10⁹/L |
| Data Storage | Up to 50,000 results with histograms |
| Reagents | Diluent (20L), Lyse (500 mL), Probe Cleaner (50 mL) |
| Reagent Use | Diluent & Lyse: Sample Analysis; Probe Cleaner: Maintenance |
| Peripheral Options | Internal Thermal Printer, Optional External Printer, USB Mouse & Keyboard Support, 4 USB Ports, LIS Connectivity |
| Power Supply | 100–230V AC, 50/60 Hz, ≤150 VA |
| Operating Environment | Temperature: 10°C – 35°C; Humidity: 20% – 85% |
| Dimension (D × W × H) | 430 mm × 280 mm × 400 mm |
| Net Weight | 16 kg |
| Blockage Clearing | High Voltage, High Pressure Flush |

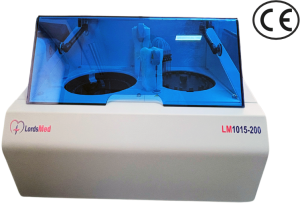

LM 1015-200
Download the Brochure
Product Specification
This fully automated clinical chemistry analyzer delivers a high throughput of up to 200 tests per hour. Utilizing photometry and colorimetry principles, it supports a wide range of analysis methods including endpoint, fixed-time, kinetic, and turbidimetry. The system features 40 sample positions and 39 reagent positions with an integrated cooling system. It offers high precision with sample volumes as low as 2µL and reagent management using dual probes with liquid level detection and collision protection. Enhanced with reusable cuvettes, robust temperature control, and comprehensive QC programs, the analyzer integrates seamlessly with external PCs and supports standard operating systems. Designed for efficiency, precision, and adaptability, it is suitable for high-demand clinical laboratories.
Technical Information
| Category | Specification |
|---|---|
| Throughput | Up to 200 Tests/hour |
| Principle | Photometry, Colorimetry |
| Analysis Methods | End Point, Fixed-Time (Two Points), Kinetic, Colorimetry, Turbidimetry, Multi-Standard |
| Sample Positions | 40 positions including Standard, QC, and STAT |
| Sample Container Types | Primary Tube or Serum Cup |
| Sample Volume | 2 to 50µL (0.1µL increments) |
| Reagent Positions | 39 reagent + 1 diluent |
| Reagent Bottle Size | 18 mL with cooling system |
| Reagent Volume | R1: 150–300µL, R2: 10–250µL |
| Reagent Cooling | Yes, Peltier and Liquid Cooling System |
| Reaction Cuvettes | 60 reusable plastic cuvettes (5mm optical path) |
| Reaction Volume | 180µL – 350µL (1µL increments) |
| Dispense Probes | 2 probes: one for reagent/sample, one for mixing |
| Sample Probe Safety | Liquid level detection, Vertical & Horizontal Collision Protection |
| Cleaning System | Automatic 7-step warm water washing |
| Quality Control | Levey-Jennings Charts, Multiple Lots, QC Programs |
| Light Source | Halogen-Tungsten Lamp (12V, 20W) |
| Wavelength Range | 9 positions between 300 – 700 nm |
| Photometry Range | 0.0001 – 4.0000 Abs |
| Reaction Temperature | 37 ± 0.1°C |
| Computer Requirement | External PC |
| Interface | RS-232C, Network Port (expandable) |
| Operating System | Windows XP, 7, 8, 10 compatible |
| Power Supply | ~100–220V, 50/60Hz (AC) |
| Dimensions (W × L × H) | 415mm × 565mm × 385mm |
| Weight | 28 kg |

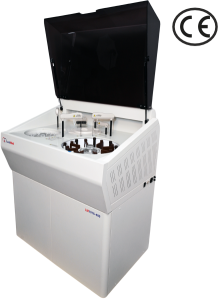

LM 1016-400
Download the Brochure

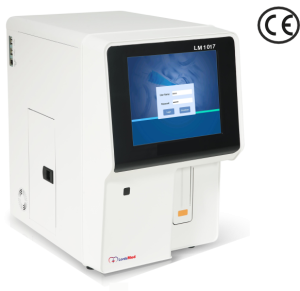

LM 1017
Download the Brochure
Product Specification
This advanced hematology analyzer utilizes a combination of flow cytometry, multi-angular laser scattering, electric impedance, and colorimetry for highly accurate and comprehensive blood analysis. It supports the reporting of 25 standard parameters and 4 research parameters, along with 2 histograms and 2 scattergrams for visual data interpretation. The system includes robust quality control features with 3-level QC and Levey-Jennings charts, customizable flagging for abnormal samples, and automated calibration options. With a storage capacity of up to 50,000 results including patient information and graphical data, it ensures reliable and efficient performance in high-throughput laboratory environments.
Technical Information
| Category | Specification |
|---|---|
| Principle | Flow Cytometry, Multi-Angular Laser Scattering, Electric Impedance, Colorimetry |
| Reportable Parameters | 25: WBC, LYM#, MID#, NEU#, EOS#, BAS#, LYM%, MID%, NEU%, EOS%, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Research Parameters | 4: ALY%, ALY#, IG%, IG# |
| Data Visualization | 2 Histograms, 2 Scattergrams |
| Quality Control | 3-Level QC, Levey-Jennings Graph, X-B Graph |
| Reagents | Built-in DIFF Lyse, LH Lyse, External Diluent, Probe Cleaner |
| Flag System | RBC, WBC, PLT abnormal samples, Customizable test group support |
| Data Storage | Up to 50,000 results including histograms, scattergrams, and patient info |
| Calibration | Manual and Auto-Calibration |
| Humidity Range | 20% – 85% Relative Humidity |
LM 1018
Download the Brochure
Product Specification
This hematology analyzer uses electric impedance and colorimetry methods to deliver precise and reliable analysis across 21 reportable parameters. It features built-in and external reagent systems, advanced flagging for abnormal samples, and high-capacity data storage. Equipped with robust quality control tools, manual and automatic calibration, and support for accessories like a barcode scanner and keyboard, this system ensures streamlined lab workflow. With a compact design and compatibility for various operating environments, it is ideal for clinical laboratories seeking accuracy and efficiency.
Technical Information
| Category | Specification |
|---|---|
| Principle | Electric Impedance and Colorimetry |
| Reportable Parameters | 21: WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Histograms | 3 Histograms |
| Reagents | Built-in Lyse, External Diluent, Probe Cleaner for Maintenance |
| Flag System | RBC, WBC, PLT Abnormal Samples, Customizable Test Groups |
| Data Storage | Up to 50,000 Results including Histograms and Patient Info |
| Quality Control | 3-Level QC, Levey-Jennings (L-J) Chart, X-B Chart |
| Calibration | Manual and Auto-Calibration |
| Accessories (Standard) | Keyboard, Waste Liquid Barrel, Ground Wire (3m) |
| Accessories (Optional) | Mouse, External Barcode Scanner |
| Power Supply | AC 100V – 240V, 50/60Hz |
| Rated Power | 40 – 60 VA |
| Operating Temperature | 10°C – 35°C |
| Humidity Range | 20% – 85% Relative Humidity |
LM 1019
Download the Brochure
Product Specification
This hematology analyzer adopts electric impedance and colorimetry methods to deliver precise diagnostics across 21 reportable blood parameters. It generates 3 histograms and features robust quality control with 3-level QC support and graphing tools. Designed with built-in lyse, external diluent, and maintenance-friendly probe cleaning, the analyzer supports abnormal sample flagging and customizable test groups. It includes manual and auto-calibration capabilities and can store up to 50,000 results. The device operates efficiently in standard laboratory environments and is equipped with both standard and optional accessories for flexible use.
Technical Information
| Category | Specification |
|---|---|
| Principle | Electric Impedance Method and Colorimetry Method |
| Reportable Parameters | 21: WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Histograms | 3 Histograms |
| Reagents | Built-in Lyse, External Diluent, Probe Cleaner for Maintenance |
| Flag System | Abnormal RBC, WBC, PLT; Supports Custom Test Groups |
| Storage Capacity | Up to 50,000 Results with Histograms and Patient Info |
| Quality Control | 3-Level QC, Levey-Jennings (L-J) Graph, X-B Chart |
| Calibration | Manual and Auto-Calibration |
| Accessories (Standard) | Keyboard, Waste Liquid Barrel, Ground Wire (3m) |
| Accessories (Optional) | Mouse, External Barcode Scanner |
| Working Voltage | AC 100V ~ 240V, 50/60Hz |
| Rated Power | 40 ~ 60 VA |
| Operating Temperature | 10°C ~ 35°C |
| Humidity Range | 20% ~ 85% Relative Humidity |
LM 1020
Download the Brochure
Product Specification

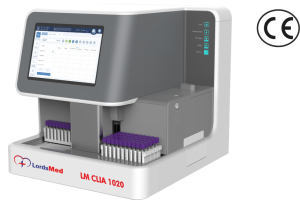

The LM CLIA 1020 Test is a high-performance chemiluminescence immunoassay analyzer designed for rapid, reliable diagnostics. Using advanced acridinium ester direct chemiluminescence technology, it delivers up to 200 tests per hour, with the first result available in just 12 minutes. Equipped with liquid level sensing, reagent monitoring, and anti-collision features, it ensures high precision and safety. The system supports multiple sample types and includes automated magnetic separation and washing. Its dual-tray design holds 280 reaction cups, and with 24 reagent and 50 sample positions, it’s well-suited for high-throughput clinical labs.
Technical Information
| Category | Specification |
|---|---|
| Model | LM CLIA 1020 Test |
| Test Principle | Acridinium Ester Direct Chemiluminescence |
| Throughput | Up to 200 Tests/Hour |
| Time for First Result | 12 Minutes |
| Sensing Functions | Liquid Level Detection, Residual Monitoring, Sample/Reagent Anti-Collision |
| Reaction Cups | 2 Consumable Trays (140 Cups Each, Total 280) |
| Reagent Positions | 24 |
| Sample Positions | 50 |
| Sample Types | Serum, Plasma, Urine, Fingertip Blood |
| Sampling Method | Steel Needle |
| STAT Mode | Supported |
| Magnetic Separation & Washing | 3-Step Magnetic Separation & 3-Step Washing |
| Reaction Temperature | 37°C ± 0.5°C |
| Dimensions (L × W × H) | 685 mm × 690 mm × 660 mm |
| Weight | 80 kg |

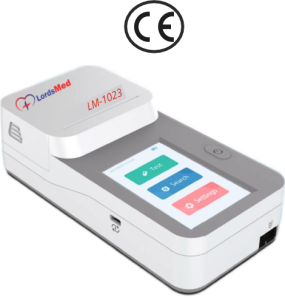

LM 1023
Download the Brochure
A.) Rapid Antigen Kit (COVID-19)
B.) Leptospira IgG/IgM
C.) Troponin I Ag Test
D.) HIV 1&2 Triline
E.) Dengue NS1, Dengue IgG/IgM, Dengue NS1+IG/IgM
F.) HCV
G.) HbsAg
H.) Syphilis
I.) Malaria Pf Antigen, Malaria Pf-Pv, Malaria Pan Antigen, Malaria Pf-Pv Antibody
J.) Chikungunya IgG/IgM
K.) HCG Pregnancy
L.) S Typhi
M.) Urine Strips (2P | 3P | 10P | 13P)
- Widal
- RPR
- RA
- CRP
- ASO
| S.NO. | Product Name | Pack Size |
|---|---|---|
| 1 | Glucose | 5 * 100ml | 2 * 500ml |
| 2 | Bilirubin T & D | 4 * 25ml | 2 * 50ml |
| 3 | Urea | 2 * 25ml | 2 * 50ml |
| 4 | Creatinine | 4 * 25ml | 4 * 50ml |
| 5 | Uric Acid | 2 * 10ml | 5 * 10ml |
| 6 | Lipids | |
| 7 | Cholesterol | 4 * 25ml | 4 * 50ml |
| 8 | HDL (Direct) | 25ml |
| 9 | LDL (Direct) | 25ml |
| 10 | Triglyceride | 4 * 25ml | 4 * 50ml |
| 11 | Proteins | |
| 12 | Albumin | 2 * 50ml | 4 * 50ml |
| 13 | Total Protein | 2 * 50ml | 4 * 50ml |
| 14 | Electrolytes | |
| 15 | Calcium | 25 t | 50 t |
| 16 | Chloride | 2 * 25ml | 4 * 25ml |
| 17 | Enzymes | |
| 18 | Alkaline Phosphatase | 2 * 20ml | 4 * 20ml |
| 19 | SGOT | 2 * 25ml | 4 * 25ml |
| 20 | SGPT | 2 * 25ml | 4 * 25ml |
| 21 | Sodium | 25 * 1 |
| 22 | Potassium | 25 * 1 |
| 23 | Magnesium | 25*1 |
| 24 | Amylase | 25*1 |
| 25 | Chloride | 25*1 |
| 26 | Uric Acid | 25*1 |
